Configuring and running the deployment#

A complete Freva instance will need the following services:

databrowser servers (host name of the databrowser server)
db servers (host name of the MariaDB server)
web servers (host name that will serve web ui)
core servers (host name(s) where the command line interface will be installed)

Running the deployment#

The command deploy-freva opens a text user interface (tui) that will walk you through the setup of the deployment.

💡 Navigation is similar to the one of the nano text editor. The shortcuts start with a ^ which indicates CTRL+.

Please refer to the usage of the text user interface section on tui usage instructions.

Deployment with existing configuration.#

Although we recommend you to follow the deployment tui you can also directly use toml configuration files for setting up the deployment. Two examples of such deployment configurations can be found in the example deployment configuration section.

If you already have a configuration saved in a toml configuration file you can issue the deploy-freva cmd command:

deploy-freva cmd --help
Usage: deploy-freva cmd [-h] [--config CONFIG] [--steps {web,core,db,databrowser,auto} [{web,core,db,databrowser,auto} ...]] [--ask-pass] [--ssh-port SSH_PORT] [-v] [-l]
                        [-g] [-V]

Deploy freva and its services on different machines.

Options:
  -h, --help            show this help message and exit
  --config, -c CONFIG   Path to ansible inventory file. (default: /home/wilfred/.anaconda3/envs/python3_12/share/freva/deployment/inventory.toml)
  --steps, -s {web,core,db,databrowser,auto} [{web,core,db,databrowser,auto} ...]
                        The services/code stack to be deployed. Use auto to only deploy outdated services (default: ['db', 'databrowser', 'web', 'core'])
  --ask-pass            Connect to server via ssh passwd instead of public key. (default: False)
  --ssh-port SSH_PORT   Set the ssh port, in 99.9% of the cases this should be 22 (default: 22)
  -v, --verbose         Verbosity level (default: 0)
  -l, --local           Deploy services on the local machine, debug purpose. (default: False)
  -g, --gen-keys        Generate public and private web certs, use with caution. (default: False)
   --skip-version-check  Skip the version check. Use with caution. (default: False)
  -V, --version         show program's version number and exit
  --cowsay              Let the cow speak! (default: False)

The --steps flags can be used if not all services should be deployed.

Setting the python and git path#

Some systems do not have access to python3.4+ (/usr/bin/python3) or git by default. In such cases you can overwrite the ansible_python_interpreter in the inventory settings of the server section to point ansible to a custom python3 binary. For example

ansible_python_interpreter=/sw/spack-rhel6/miniforge3-4.9.2-3-Linux-x86_64-pwdbqi/bin/python3

The same applies to the path to the git binary:

git_path=/sw/spack-levante/git-2.31.1-25ve7r/bin/git

Setting up the deployment without root-privileges#

Sometimes it can be necessary, either due to security concerns or user rights restrictions, to set up all services as a un-privileged user. Since version v2402.0.0 the deployment routine supports such setup scenarios.

Especially when security is a concern we recommend you to use podman instead of docker for setting up the freva infrastructure. This can be done by simply installing podman on the machines where any of the above mentioned services are deployed. There is also an conda-forge packages available for installation.

Root less installation works essentially just like root based installation. You only have to either set the become_user configuration to a user name that is different from root or leave it blank. In case you leave it blank the login user will deploy the services. You can find a working minimal example in the deployment configuration example section

Although root-less installation is straight forward it comes with two caveats that should be kept in mind:

User based systemd services: The systemd units are not installed system wide but on user basis, which means that you can access the service using the --user flag: for example:

systemctl status --user freva-web

instead of

systemctl status freva-web

This also means that in its default configuration systemd will terminate all running user services as soon as the user terminates a login session. To avoid this you have to enable ‘lingering’ states of services for that user:

loginctl enable-linger [USER]

This command can only by applied by the root user. Backups are also done as user instead of system wide basis, you can check the backups after deployment using the crontab -l command.

No direct access to ports 80 and 443: The freva web user interface cannot directly be accessed by a web server listing on port 80 and 443 as those ports are off limits for normal users. If you choose to deploy the web app as an unprivileged user the apache httpd web server serving the web app will be running on port 9080 instead of 80 and port 9443 instead of 443. You can either communicate the usage of those ports to the users of the system, or recommended, set up a simple redirect on another httpd server that is running on the server where the web app is deployed. Although this httpd server needs a privileged user it only has to be configured once. A simple configuration for apache httpd looks the following:

<VirtualHost *:80>
    ServerName my-host
     Redirect permanent / https://www.my-host.org.au:9443
</VirtualHost>

<VirtualHost *:443>
    ServerName my-host
     Redirect permanent / https://www.my-host.org.au:9443
</VirtualHost>

This would redirect all traffic from http(s)://www.my-host.org to the apache httpd container that serves the web app without having the users to remember the specific ports. Similar configurations are available to other web server software.

Version checking#

Because the system consists of multiple micro services the software will perform a version check before the deployment to ensure that all versions fit together. If you for example want to deploy the rest api the system will also check an update of the freva cli if it finds that the cli library doesn’t fit with the latest version of the rest api. This ensures that all parts of the system will work together.

💡 You can disable this version checking by using the --skip-version-check flag. Use this flag with caution.

Using environment variables#

Once the deployment configuration is set up it might be useful to store the config and all the files that are needed to run the deployment at a central, yet secure location. This can be useful if multiple admins will have to take turns in (re)-deploying the system and thus the configuration has to be up to date for those admins. The problem that arises is that the setup might differ slightly for each person and computer running the deployment. For instance the ansible_user key might differ. For this purpose the deployment supports setting environment variables. Those environment variables can be used in the configuration file. Like ansible_user = $USER. You can then set up the USER variable with help of the deployment tui. To do so open the main menu (CTRL+x) and then choose the add set variables options (CTRL+v). You can then add or edit variables. In the figure below the USER variable is set to a specific user name. If the deployment encounters an entry using $USER variable it will be replaced by the according value that points to the $USER variable.

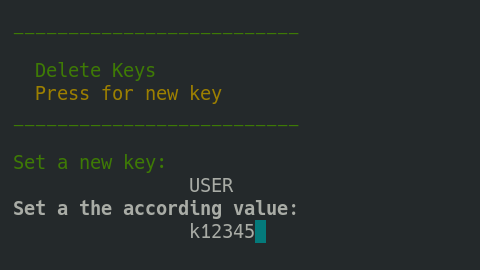

Add Variable

Relative paths using the $CFD variable#

Instead of setting the absolute paths in the configuration files for example the path to the public certificate files, you should give the paths relative to the configuration file. To indicate that the freva-deployment machinery should create paths relative to the configuration you should set all paths starting with the $CFD (current file directory) variable. For example if the configuration file is located in /home/user/config/foo/foo.toml and the public cert file is located in the same directory as the configuration file then you can set the path to the cert file in the configuration files via $CFD/foo.crt.

This will assure that paths will work from any other machine.

Advanced: Adjusting the playbook#

Playbook templates and be found the in the ~/.config/freva/deployment/playbooks directory. You can customise those playbooks if the standard installation procedure is not well suited. Each deployment section offers the option to set paths to custom playbook files instead of the standard playbook files. To change the behaviour of the installation for a certain freva instance, simply adjust the path to the playbook for that step in the inventory file or tui. For example:

web_playbook = '/home/myuser/playbooks/my-web.yml'

Known Issues:#

Below are possible solutions to some known issues:

SSH connection fails:#

fatal: [host.name]: FAILED! => {"msg": "Using a SSH password instead of a key is not possible because Host Key checking is enabled and sshpass does not support this.  Please add this host's fingerprint to your known_hosts file to manage this host."}

This means that you’ve never logged on to the server. You can avoid this error message by simply logging on to the server for the first time.

Playbook complains about refused connections for the solr or db playbook#

fatal: [localhost]: FAILED! => {"changed": true, "cmd": "docker run --name \"test_ces_db\" -e MYSQL_ROOT_PASSWORD=\"T3st\" -p \"3306\":3306 -d docker.io/library/mariadb", "delta": "0:00:00.229695", "end": "2021-05-27 16:10:58.553280", "msg": "non-zero return code", "rc": 125, "start": "2021-05-27 16:10:58.323585", "stderr": "docker: Error response from daemon: driver failed programming external connectivity on endpoint test_ces_db (d106bf1fe310a2ae0e012685df5a897874c61870c5241f7a2af2c4ce461794c2): Error starting userland proxy: listen tcp4 0.0.0.0:3306: bind: address already in use.", "stderr_lines": ["docker: Error response from daemon: driver failed programming external connectivity on endpoint test_ces_db (d106bf1fe310a2ae0e012685df5a897874c61870c5241f7a2af2c4ce461794c2): Error starting userland proxy: listen tcp4 0.0.0.0:3306: bind: address already in use."], "stdout": "895ba35cdf5dcf2d4ec86997aedf0637bf4020f2e9d3e5775221966dcfb820a5", "stdout_lines": ["895ba35cdf5dcf2d4ec86997aedf0637bf4020f2e9d3e5775221966dcfb820a5"]}

This means that there is already a service running on this port - in this case a local mariadb service. To avoid this error chose a different port in your config/inventory file.

Playbook cannot create database tables because connections fails#

fatal: [localhost]: FAILED! => {"changed": false, "msg": "ERROR 1698 (28000): Access denied for user 'root'@'localhost'\n"}

This is a common problem if you’ve set the mariadb docker host to be localhost. You can avoid the problem by setting the db_host variable to a non localhost type IP like 172.17.0.1. If you’re not sure what IP to use try the following command

docker inspect -f '{{range .NetworkSettings.Networks}}{{.IPAddress}}{{end}}' db_docker_name

you can figure out the db_docker_name using the following command:

docker container ls

Cannot pull/run container due to insufficient system UIDs.#

When you run the services in rootless mode you might see this error message when trying to pull/run container images:

ERRO[0000] cannot find UID/GID for user foo: no subuid ranges found for user "foo" in /etc/subuid - check rootless mode in man pages.

To fix this issue you should set the ignore_chown_errors to "true":

grep ignore_chown_err /etc/containers/storage.conf
# ignore_chown_errors can be set to allow a non privileged user running with
ignore_chown_errors = "true"

man storage.conf
…
       ignore_chown_errors = "false"
         ignore_chown_errors can be set to allow a non privileged user
         running with a  single UID within a user namespace to run containers.
         The user can pull and use any image, even those with multiple uids.
         Note multiple UIDs will be squashed down to the default uid in the
         container.  These images will have no separation between the users
         in the container. (default: false)

You might want to read this article for more information.

Insufficient permissions when running in rootless mode (SELinux)#

When running containers in rootless mode you might see errors like this:

podman run --userns=keep-id
/bin/bash: error while loading shared libraries: libc.so.6: cannot change memory protections

This issues arises when the SELinux container context is not set for the local user container storage location. You can set the context via:

sudo semanage fcontext -a -t container_var_lib_t '/home/myuser/.local/share/containers/storage(/.*)?'
sudo restorecon -Rv /home/myuser/.local/share/containers/storage

Stuck in load/save dialogue in the tui#

The load/save forms can be exited by pressing the <TAB> key which will get you to input field at the bottom of the screen. If the input field has text delete it an press the <ESC> key, this will bring you get to the screen where you started.
